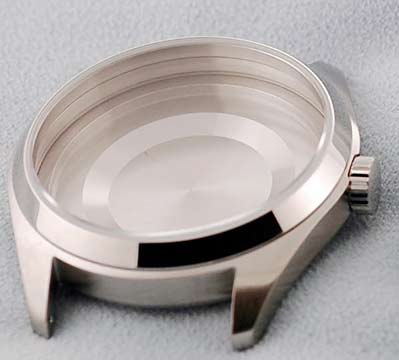

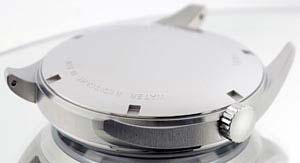

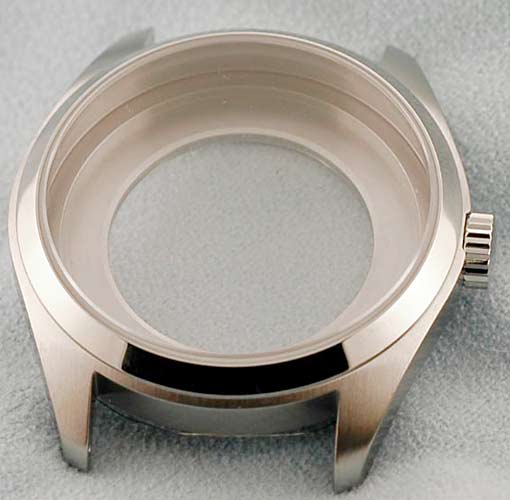

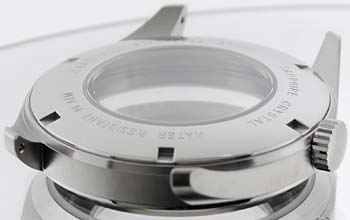

Case 10 ATM Steel, 42mm with Top & Bottom Mineral Glass and Screwdown Crown| | Case Style #15 comes with a brass nickel plated movement ring, which allows the case to be used with the ETA 2801-2, 2804-2, 2824-2, 2836-2, Sellita SW200-1, SW210-1, SW220-1 movements.
This 10 ATM water resistant case is made of 100% stainless steel, has a hardened 35.50 mm diameter x 2.30 mm thick mineral glass on top, hardened 25.00 mm diameter x 1.30 mm thick mineral glass on bottom and 7 mm screwdown crown. The watch band lug size is 22 mm. Case diameter is 42 mm with a height of 11.65 mm. This case take a dial with an outside diameter of no more than 35.8 mm the viewable dial opening is 35 mm. The distance from the case lug holes on one side to the other is 46 mm (1 13/16 inch).
THIS IS A COMPLETE CASE! All complete cases will come with Crystals, Crown and all Gaskets.
In separate bag is the movement case ring, a tension spring that fits in the case back and a O-ring case back gasket. The case ring is installed with the flat side down (the cut out should go over the stem) after the movement has been set inside the case. No case clamps are needed with this design, however the movements case screws are needed and screwed in so they make contact with the case ring. Place the tension spring on the inside of the case back before screwing the case back onto the case.
Click here to see Assembly Instructions for 42 mm Cases 12 thru 17.
| |
OFREI-CASE15
$78.95
|

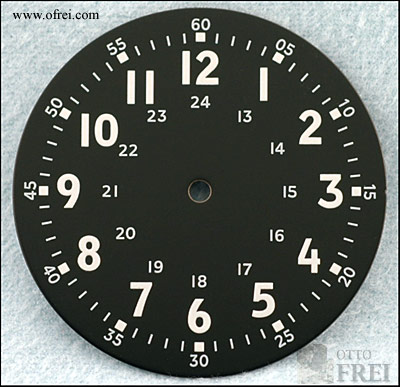

Luminous Numbers & Hour Markers, Dial w/24 Hr Track Black for 2836-2 & SW220-1| |
Dial for our 42 mm diameter 10ATM Watch Cases Style #'s 12 thru 18. The outside diameter of this dial is 35.8 mm, it is 29.0 mm to the start of the minute track, 31.0 mm to the end of the minute track minute track and 34 mm to the end of the 60, 05, 10 etc. outer ring of numbers. Dial fits the ETA 2836-2 or Sellita SW220-1 Swiss Made day/date movements .
| |
DIAL-35.8-#3
$12.00
|
Extra Long 20 mm Stem for Sellita SW210-1|
|
Also for Sellita SW200-1, SW215-1, SW220-1, SW240-1 & SW260-1. Also interchangeable with ETA stem series 2801-2 etc. If your going to re-case or casing a movement into a 42 mm or larger case, a this 20 mm long stem may be necessary. A standard 16 mm long stem comes installed by the factory on all new movements.
| |
401/1543-SEL
$4.95
|
Sunken Dial with Groves White-Green Luminous 35.8 mm fits Cases #12-18, for ETA 2824-2
| |
Dial Diameter 35.8 mm, minute track is 34 mm. For our 42 mm cases styles #12, #13, #14, #15, #16, #17 and #18 with the ETA 2824-2 or Sellita SW200-1 movement with date window.
| |
DIAL-35.8-#4
$12.00
|
O-Ring Gaskets GK-75-3800
$2.10
Cross Section: 0.75 mm, Inside Diameter: 38.00 mm. Sold in packages of 3 pieces, price breaks at 6, 12 and 144 packages.
|
Hands, 90/150/25 For Large Diameter Watch Dials
Selection of long length hands to fit our 42 mm cases and large diameter dials in the popular hole size, minute 0.90, hour 1.5 and second 0.25 mm.
|
