Seitz Jewels, Bushings & Tools

Otto Frei, Worldwide Distributor of All Seitz Synthetic Watch Jewels


Seitz, Watch Jewels (rubies) Individual Sizes & Types
Click Here For Seitz Watch & Precision Industrial Jewels


Anvil Incablocs Set

Features 6 Pushers and 7 Rivetting Stake; axle diameter at 4 mm. Tool used for fixing Incabloc shock-absorbers.

MSA 13.153
$129.95
order.gif  checkout.gif


Seitz Attachment to Tighten Cannon Pinions

To tighten cannon pinion, fit the special pusher to the spindle and the special stake to the platform of the jeweling tool. The blades must be exactly opposite each other, and the micrometer screw must be set before the work is started.

BERG-31001
$29.95
order.gif  checkout.gif



Bergeon 31300 Seitz Jeweling Kit

Complete set delivered with operating instructions. Contents includes 1 jewelling tool, 12 flat pushers, 4 stakes, 12 pump pushers, 11 concave pushers, 15 reamers with spindle, 4 tools for reducing hour hand holes, 4 tools for reducing holes in plates, 3 tools for setting levers, 1 platform stake, 1 micrometer needle with stake, 1 bush for nut, 1 pusher and stake for lanterning cannon pinions, 1 bakelite base. Comes in a hard plastic Case.

Special order item, delivery time frame is dependent on Bergeon stock.

BERG-31300
$1,787.00
order.gif  checkout.gif

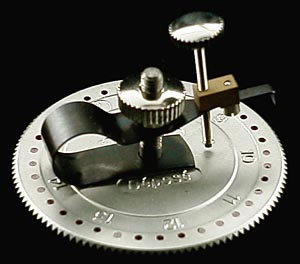

Bergeon Seitz Pivot Straightener 30350-D-02

A wonderful tool that sure looks good. Allows the pivots to be straightened without breaking due to a control device as well as a screw fitted with a stop. 41 Jewelled holes diam. 0.07 - 0.15 mm. Progression 0.025 mm. Bergeon reference #30350-D-02.

FB-743
$708.00
order.gif  checkout.gif



Seitz Assortment of 120 Friction Bushing for Flat Calibers

In plated brass, 40 sizes with exterior diameters of 0.70 to 3.00 mm.


30320-001
No Longer Available, Some Refill Sizes Still Available

Seitz Brass Plated Friction Bushing Hole 0.10 mm Ex. Diam. 0.70
$4.00
BERG-30320-REFILL-1
Exterior Diameter 0.70 mm
Hole Diameter : 0.10 mm
Height 0.25 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.11 mm Ex. Diam. 1.30
$4.00
BERG-30320-REFILL-11
Exterior Diameter 1.30 mm
Hole Diameter : 0.11 mm
Height 0.45 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.11 mm Ex. Diam. 1.40
$4.00
BERG-30320-REFILL-12
Exterior Diameter 1.40 mm
Hole Diameter : 0.11
Height 0.50 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.35 mm Ex. Diam. 1.40
$4.00
BERG-30320-REFILL-13
Exterior Diameter 1.40 mm
Hole Diameter : 0.35 mm
Height 0.35 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.12 mm Ex. Diam. 1.50
$4.00
BERG-30320-REFILL-15
Exterior Diameter 1.50 mm
Hole Diameter : 0.12 mm
Height 0.55 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.40 mm Ex. Diam. 1.50
$4.00
BERG-30320-REFILL-16
Exterior Diameter 1.50 mm
Hole Diameter : 0.40 mm
Height 0.55 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.70 mm Ex. Diam. 1.50
$4.00
BERG-30320-REFILL-17
Exterior Diameter 1.50 mm
Hole Diameter : 0.70 mm
Height 0.60 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.12 mm Ex. Diam. 1.60
$4.00
BERG-30320-REFILL-18
Exterior Diameter 1.60 mm
Hole Diameter : 0.12 mm
Height 0.60 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.40 mm Ex. Diam. 1.60
$4.00
BERG-30320-REFILL-19
Exterior Diameter 1.60 mm
Hole Diameter : 0.40 mm
Height 0.60 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.45 mm Ex. Diam. 1.60
$4.00
BERG-30320-REFILL-20
Exterior Diameter 1.60 mm
Hole Diameter : 0.45 mm
Height 0.40 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.75 mm Ex. Diam. 1.60
$4.00
BERG-30320-REFILL-21
Exterior Diameter 1.60 mm
Hole Diameter : 0.75 mm
Height 0.60 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.14 mm Ex. Diam. 1.80
$4.00
BERG-30320-REFILL-22
Exterior Diameter 1.80 mm
Hole Diameter : 0.14 mm
Height 0.70 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.45 mm Ex. Diam. 1.80
$4.00
BERG-30320-REFILL-23
Exterior Diameter 1.80 mm
Hole Diameter : 0.45 mm
Height 0.70 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.80 mm Ex. Diam. 1.80
$4.00
BERG-30320-REFILL-25
Exterior Diameter 1.80 mm
Hole Diameter : 0.80 mm
Height 0.65 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.16 mm Ex. Diam. 2.0 mm
$4.00
BERG-30320-REFILL-26
Exterior Diameter 2.00 mm
Hole Diameter : 0.16 mm
Height 0.70 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.40 mm Ex. Diam. 2.0
$4.00
BERG-30320-REFILL-27
Exterior Diameter 2.00 mm
Hole Diameter : 0.40 mm
Height 0.70 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.60 mm Ex. Diam. 2.0
$4.00
BERG-30320-REFILL-28
Exterior Diameter 2.00 mm
Hole Diameter : 0.60 mm
Height 0.70 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.80 mm Ex. Diam. 2.0
$8.00
BERG-30320-REFILL-29
Exterior Diameter 2.00 mm
Hole Diameter : 0.80 mm
Height 0.50 mm

Seitz Brass Plated Friction Bushing Hole 0.18 mm Ex. Diam. 2.30
$4.00
BERG-30320-REFILL-30
Exterior Diameter 2.30 mm
Hole Diameter : 0.18 mm
Height 0.80 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.50 mm Ex. Diam. 2.30
$4.00
BERG-30320-REFILL-31
Exterior Diameter 2.30 mm
Hole Diameter : 0.50 mm
Height 0.75 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.70 mm Ex. Diam. 2.30
$4.00
BERG-30320-REFILL-32
Exterior Diameter 2.30 mm
Hole Diameter : 0.70
Height 0.80 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.60 mm Ex. Diam. 2.60
$4.00
BERG-30320-REFILL-34
Exterior Diameter 2.60 mm
Hole Diameter : 0.60 mm
Height 0.75 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.80 mm Ex. Diam. 2.60
$4.00
BERG-30320-REFILL-35
Exterior Diameter 2.60 mm
Hole Diameter : 0.80 mm
Height 0.80 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 1.0 mm Ex. Diam. 2.60
$4.00
BERG-30320-REFILL-36
Exterior Diameter 2.60 mm
Hole Diameter : 1.00 mm
Height 0.80 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.60 mm Ex. Diam. 3.00
$4.00
BERG-30320-REFILL-38
Exterior Diameter 3.00 mm
Hole Diameter : 0.60 mm
Height 0.80 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.80 mm Ex. Diam. 3.0
$4.00
BERG-30320-REFILL-39
Exterior Diameter 3.00 mm
Hole Diameter : 0.80 mm
Height 0.85 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.10 mm Ex. Diam. 0.90
$4.00
BERG-30320-REFILL-4
Exterior Diameter 0.90 mm
Hole Diameter : 0.10 mm
Height 0.30 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 1.00 mm Ex. Diam. 3.0
$4.00
BERG-30320-REFILL-40
Exterior Diameter 3.00 mm
Hole Diameter : 1.00 mm
Height 0.60 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.11 mm Ex. Diam. 1.0
$4.00
BERG-30320-REFILL-5
Exterior Diameter 1.00 mm
Hole Diameter : 0.11 mm
Height 0.35 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.30 mm Ex. Diam. 1.00
$4.00
BERG-30320-REFILL-6
Exterior Diameter 1.00 mm
Hole Diameter : 0.30 mm
Height 0.30

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.11 mm Ex. Diam. 1.10
$4.00
BERG-30320-REFILL-7
Exterior Diameter 1.10 mm
Hole Diameter : 0.11 mm
Height 0.35 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.11 mm Ex. Diam. 1.20
$4.00
BERG-30320-REFILL-8
Exterior Diameter 1.20 mm
Hole Diameter : 0.11 mm
Height 0.40 mm

Quantity   1 - 2     3+
Price $4.00 $3.25


Seitz Brass Plated Friction Bushing Hole 0.35 mm Ex. Diam. 1.20
$4.00
BERG-30320-REFILL-9
Exterior Diameter 1.20 mm
Hole Diameter : 0.35 mm
Height 0.30

Quantity   1 - 2     3+
Price $4.00 $3.25



Seitz Assortment of 120 Friction Bushing for High Calibers

In plated brass, 40 sizes with exterior diameters of 0.70 to 3.00 mm. The exterior diameters and the hole diameters of this assortment are the same as assortment 30320-1, however the height of the jewel is about double.


30320-002
No Longer Available, Some Refill Sizes Still Available


Seitz Jewelling Tool Accessories
Click Here to Order Spare Reamers and other Accessories for the Seitz Jewelling Tool
Reamers, Pushers, Incabloc Anvil Sets and more.


Genuine Crowns for Rolex®

Seitz Brass Plated Friction Bushing Hole 0.40 mm Ex. Diam. 0.90
$4.00
BERG-30320-REFILL-3
Exterior Diameter 0.90 mm
Hole Diameter : 0.40 mm
Height 0.70 mm

Quantity   1 - 2     3+
Price $4.00 $3.25
